Galvanized Steel Sheets are carbon steel sheets coated with a protective layer of zinc through a hot-dip process, providing excellent corrosion resistance and durability. Manufactured by Wuxi Sylaith Special Steel Co., Ltd. , these high-quality GI sheets feature 0.12-0.2mm thickness, Z10-Z29 zinc coating, and full hard temper, making them ideal for a wide range of industrial applications.

Our Prime Galvanized Sheets are produced from hot-rolled based steel with skin pass treatment for improved surface flatness and regular spangle finish. They are widely used for making pipes, cutting sheets, corrugated roofing sheets, containers, fences, and small tools.

Applications

The versatility of Sylaith Galvanized Steel Sheets makes them suitable for numerous industries:

1. Pipe Making

• Welded steel pipes and tubes

• Conduits and electrical tubing

• Water and gas pipes

• Scaffolding pipes

2. Corrugated Sheets

• Roofing panels

• Wall cladding

• Agricultural buildings

• Industrial sheds

3. Container Manufacturing

• Shipping containers

• Storage boxes

• Freight containers

• Toolboxes

4. Fencing

• Chain link fences

• Security fences

• Garden fencing

• Highway guardrails

5. Small Tools

• Hand tools

• Toolboxes

• Hardware components

• Brackets and supports

6. General Fabrication

• Cutting sheets for custom parts

• Stamped components

• HVAC ductwork

• Automotive parts

Working Principle: How Galvanized Steel Sheets Are Made

Galvanized steel sheets are produced through a precise metallurgical process that bonds zinc to steel for corrosion protection.

Step 1: Base Material Preparation

High-quality hot-rolled steel coils (grades DX51D, SGCC) are selected as the substrate.

Step 2: Surface Cleaning

The steel strip is thoroughly cleaned through:

• Degreasing: Removes oils and contaminants

• Pickling: Removes iron oxides and scale

• Fluxing: Prepares the surface for optimal zinc adhesion

Step 3: Hot-Dip Galvanizing

The cleaned strip passes through a bath of molten zinc at approximately 450°C-460°C. A metallurgical bond forms between the steel and zinc, creating a corrosion-resistant layer with Z10-Z29 coating (10-29 g/m² of zinc per side).

Step 4: Cooling & Spangle Formation

After coating, the strip is cooled. The cooling rate determines the spangle type (regular, minimum, zero, or big spangle).

Step 5: Skin Pass (Temper Rolling)

A light rolling pass improves:

• Surface flatness

• Mechanical properties

• Surface finish

Step 6: Inspection

Every coil undergoes rigorous testing:

• Coating thickness verification (Z10-Z29)

• Surface quality inspection

• Dimensional accuracy (±1% tolerance)

• Mechanical property testing (full hard)

Step 7: Slitting & Cutting

Sheets are cut to customer-specified lengths (6000-100000mm) or slit to custom widths.

Step 8: Packaging

Finished sheets are packed in standard seaworthy packaging for safe ocean transport.

FAQ (Frequently Asked Questions)

Q1: What is the difference between full hard and regular galvanized steel?

A:

• Full Hard: Cold-rolled to maximum hardness, higher strength, less formability. Ideal for corrugated sheets and structural applications.

• Regular (Soft): Annealed for better formability, lower strength. Ideal for deep drawing and complex bending.

Q2: What does Z10-Z29 coating mean?

A: Z stands for Zinc, and the number indicates the coating weight in grams per square meter (total both sides). Z10-Z29 means 10-29 g/m² of zinc. Higher coating weights (up to Z275) are available for more corrosive environments.

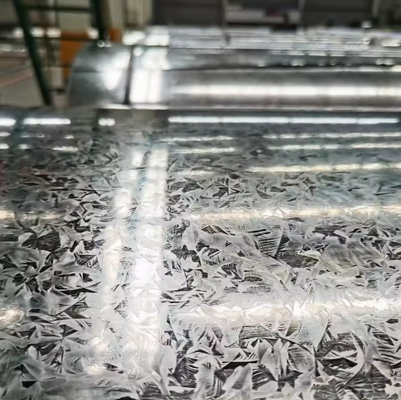

Q3: What is regular spangle?

A: Regular spangle refers to visible zinc crystals on the surface. This is the classic galvanized appearance and is suitable for most general applications like roofing and fencing.

Q4: What is skin pass?

A: Skin pass (or temper rolling) is a light cold rolling step after galvanizing. It improves surface flatness, eliminates yield point elongation, and enhances surface finish.

Q5: What thickness do you offer?

A: Standard thickness is 0.12–0.2mm. We can also supply thicknesses from 0.1mm to 2.0mm upon request.

Q6: What is your MOQ?

A: Standard MOQ is 1 ton. Sample orders and smaller quantities are negotiable — please contact us to discuss.

Q7: Do you provide processing services?

A: Yes, we offer comprehensive processing services:

• Welding for assembly

• Punching for holes and cutouts

• Cutting to custom sizes

• Bending for shapes and angles

• Decoiling from coil to sheet

Q8: Are these sheets suitable for making corrugated roofing sheets?

A: Absolutely. Our full hard galvanized sheets are specifically designed for roll-forming into corrugated roofing sheets. The full hard temper provides the necessary strength for structural roofing applications.

Q9: What is the difference between hot rolled based and cold rolled based galvanized?

A:

• Hot Rolled Based: Lower cost, suitable for general applications where surface finish is not critical.

• Cold Rolled Based: Better surface finish, tighter tolerances, higher cost. Ideal for pre-painting and decorative applications.

Our product uses hot rolled based steel, offering the best cost-performance balance.

Q10: Can you customize the length?

A: Yes, we offer custom lengths from 6000mm to 100000mm. Please provide your specific requirements for a custom quotation.
